| 外形 | 型号 | 测量范围 | 输出 | 电源电压 | 线性度 | 响应时间 | 窗口尺寸 |
|---|---|---|---|---|---|---|---|
|
CSM-A | 1-5A | 25mA | ±15V | 0.2% | ≤1μs | PCB |
|
CSM-A | 5-25A | 25mA | ±15V | 0.2% | ≤1μs | PCB |
|
CSM-AP | 50-200A | 50mA | ±15V | 0.2% | ≤1μs | 10*15 |
|
CSM-AY | 6-25A | 25mA | ±15V | 0.2% | ≤1μs | PCB |
|
CSM-B | 50-300A | 50/150mA | ±15V | 0.2% | ≤1μs | 10*20 |
|
CSM-LA | 50-100A | 50mA | ±15V | 0.2% | ≤1μs | 7*12.5 |
|
CSM-LF | 200OA | 400mA | ±15V | 0.1% | ≤1μs | Φ60 |
|
CSM-LTA | 50-300A | 50/100mA | ±15V | 0.2% | ≤1μs | Φ20 |
|
CSM-LTB | 300-500A | 100mA | ±15V | 0.2% | ≤1μs | Φ35 |
|

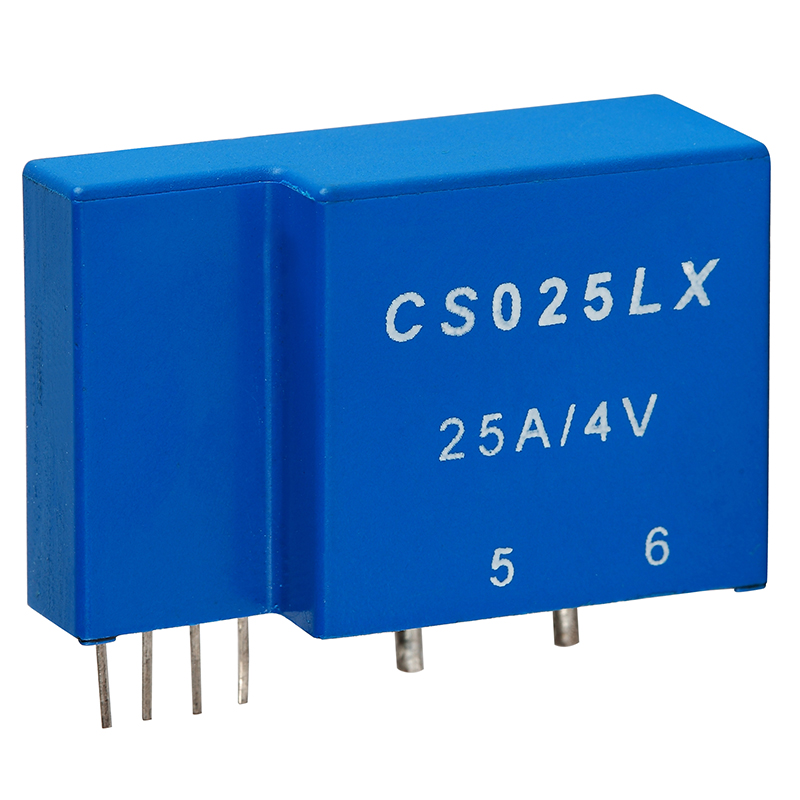

CSM-LX | 5-50A | ±4.000V | ±15V | 0.2% | ≤1μs | PCB |
|
CSM-NPT3.3 | 6-50A | 1.650±0.625 | +3.3 | 0.1% | ≤500ns | PCB |
|
CSM-NPT5 | 6-50A | 2.500±0.625 | +5V | 0.1% | ≤500ns | PCB |
|
CSM-PST3.3 | 5-30A | 1.650±0.625 | +3.3 | 0.2% | ≤500ns | PCB |
|
CSM-PST5 | 5-50A | 2.500±0.625 | +5V | 0.2% | ≤500ns | PCB |
|
CSM-SY | 5-50A | ±4.000V | ±15V | 0.2% | ≤1μs | PCB |
|
|||||||
